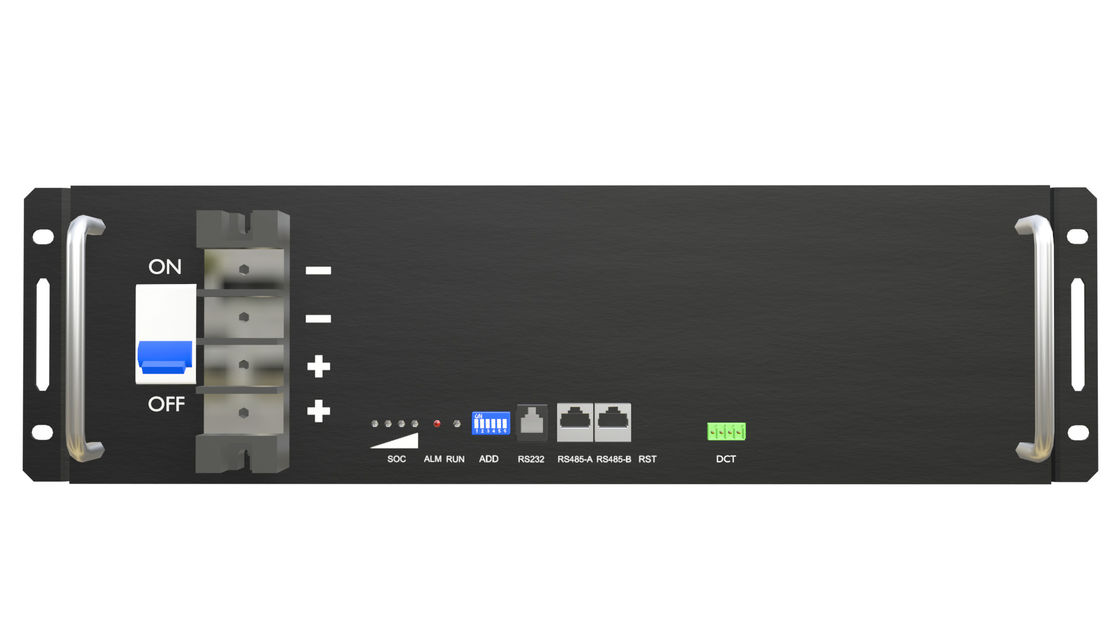

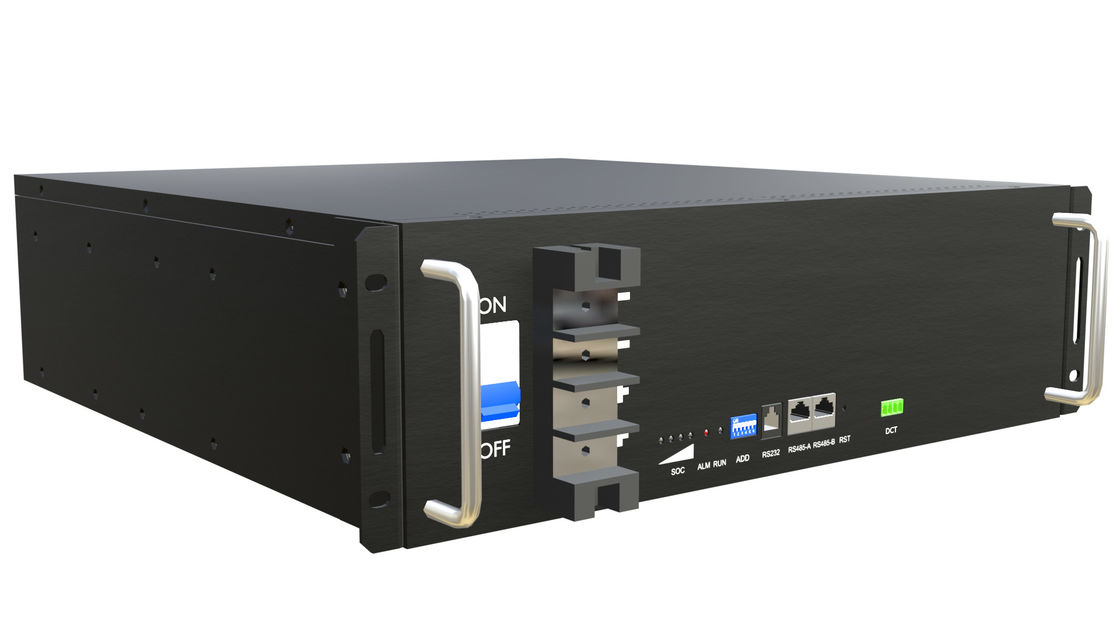

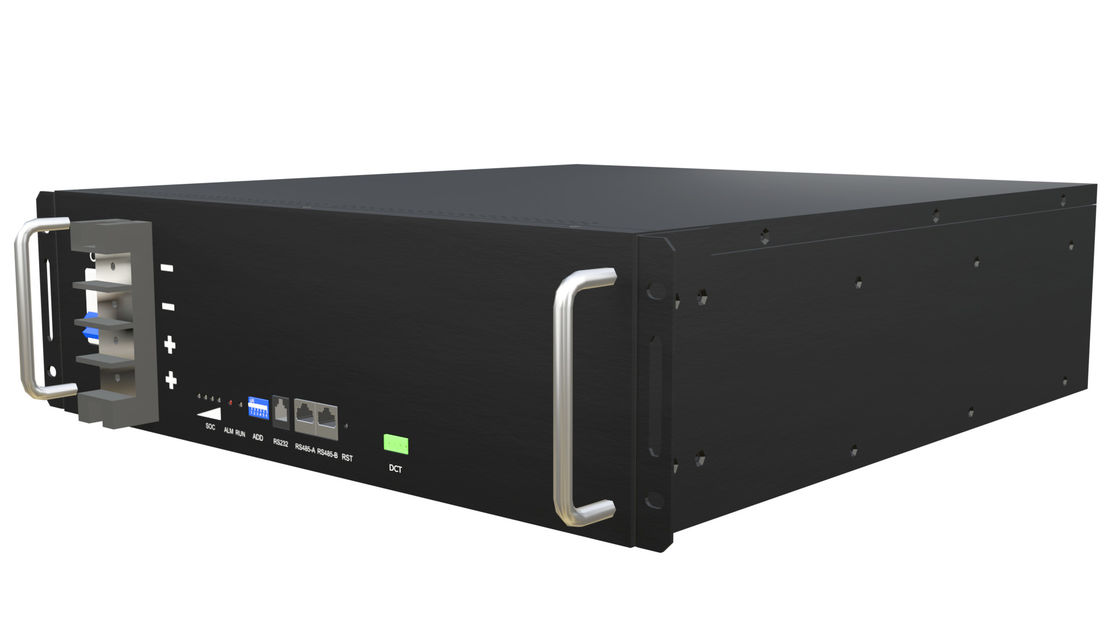

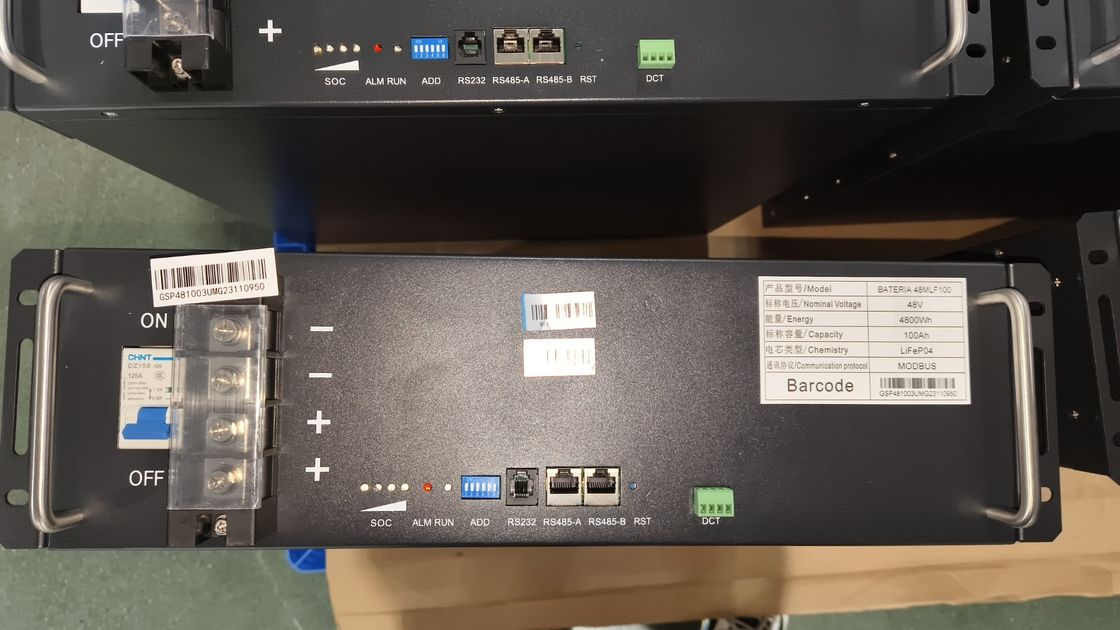

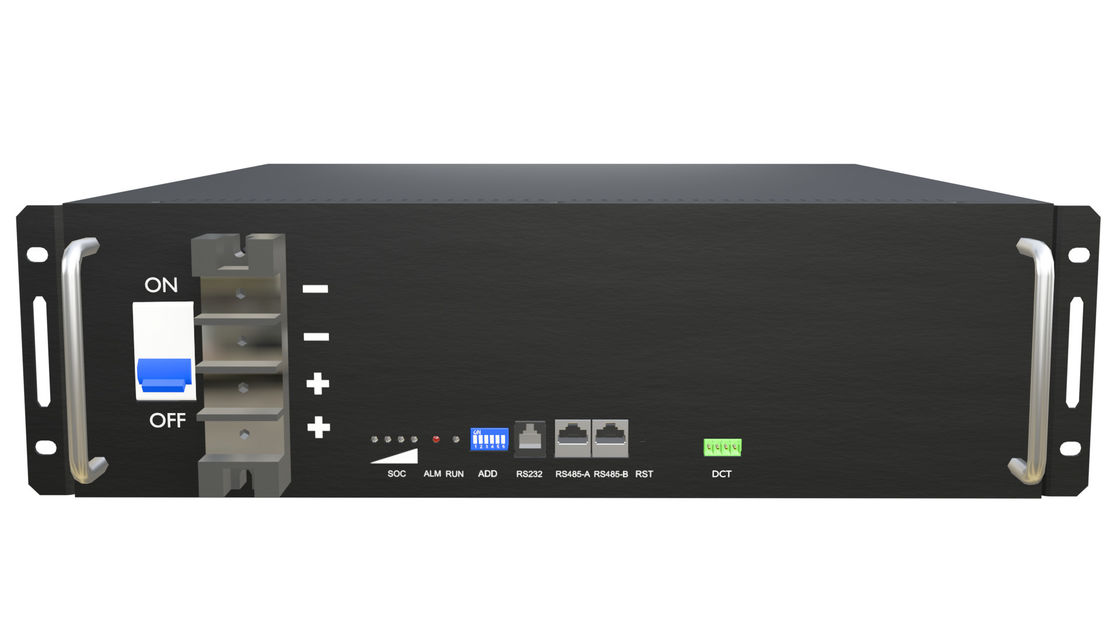

Helith Hyper 48200 Rack-Mounted LiFePO4 Battery - 10.24 kWh, 6000+ Cycle Life, High-Performance Energy Storage Solution

Product Description:

Features:

• Nominal Energy: 10.24 kWh
• Nominal Voltage: 51.2V
• Nominal Capacity: 200Ah
• Cycle Life: >6000 cycles
• Operating Voltage Range: 40V-58.4V
• Max Charge/Discharge Current: 200A
• Cell Type: A-Grade LiFePO4 prismatic cells (100Ah)
• Comprehensive BMS Protection: Ensures safety, performance, and longevity
• High Voltage Series Connection & Low Voltage Parallel Connection: Flexible setup options for different configurations
• Communication Interface: RS485, CAN
• Temperature Range: Charge (055°C), Discharge (-2055°C)
• Installation: Rack mount (5U, 550 x 442 x 220 mm)
• Weight: 84 kg
• Optional LCD Display

Technical Parameters:

Applications:

• Commercial Energy Storage: Ideal for businesses seeking reliable and scalable energy storage solutions for backup power or peak shaving.
• Industrial Energy Systems: Supports energy needs for factories, warehouses, and manufacturing plants that require continuous and high-capacity energy.
• Renewable Energy Integration: Perfect for solar or wind energy systems to store excess energy for later use, optimizing efficiency and reducing reliance on the grid.
• Data Centers: Ensures uninterrupted power supply for critical infrastructure with high energy demands and minimal downtime.
• Off-grid Power Solutions: Can be used in remote locations or off-grid settings to provide consistent energy where traditional grid access is limited or unavailable.

FAQ:

Q1. What is the recommended operating temperature range for the Helith Hyper 48200?

• The recommended charge temperature range is 055°C, and the discharge temperature range is -2055°C.

Q2. Can the Helith Hyper 48200 battery be used in parallel or series configurations?

• Yes, the Hyper 48200 supports both parallel and series configurations for flexible system designs and scalability.

Q3. How long can I expect the Hyper 48200 to last?

• With a cycle life of over 6,000 cycles, the battery is designed for long-term use and durability, offering a lifespan of 10+ years under normal usage conditions.

Q4. What safety features are included in the Helith Hyper 48200?

• The battery comes with a comprehensive Battery Management System (BMS) that provides real-time monitoring, overcharge, over-discharge, over-temperature, and short-circuit protection.

Q5. Can I install the Helith Hyper 48200 myself?

• The battery is designed for easy rack mounting. However, for optimal performance and safety, we recommend professional installation, especially for larger energy systems.

Q6. Does the Helith Hyper 48200 come with a warranty?

• Yes, the Helith Hyper 48200 comes with a standard warranty that covers defects in materials and workmanship. Please refer to our warranty policy for more details.
