Place of Origin:
China
Brand Name:
HelithTech
Model Number:
Hertz 12200
Contact Us

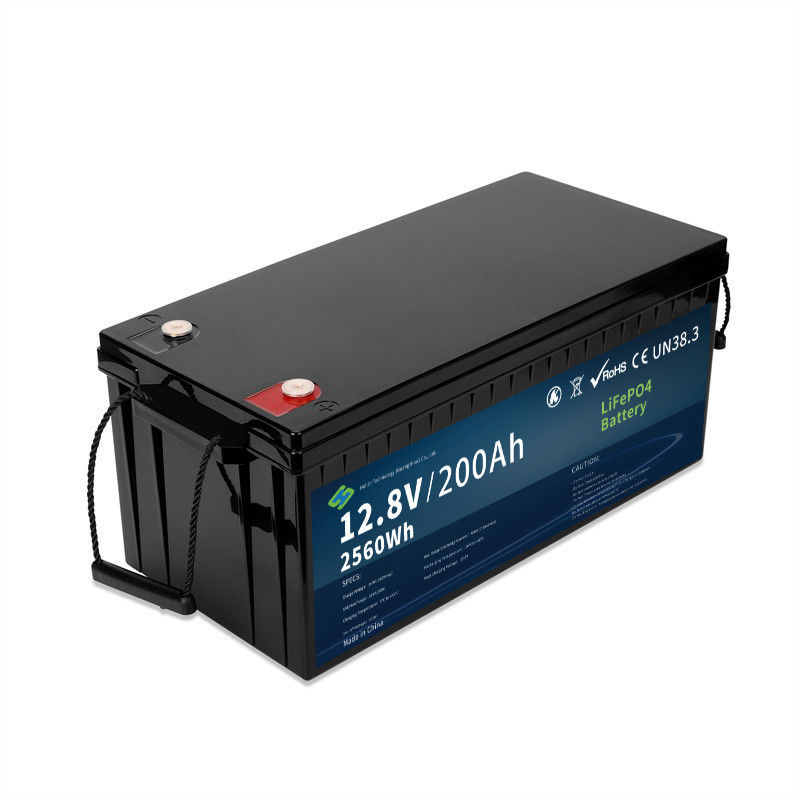

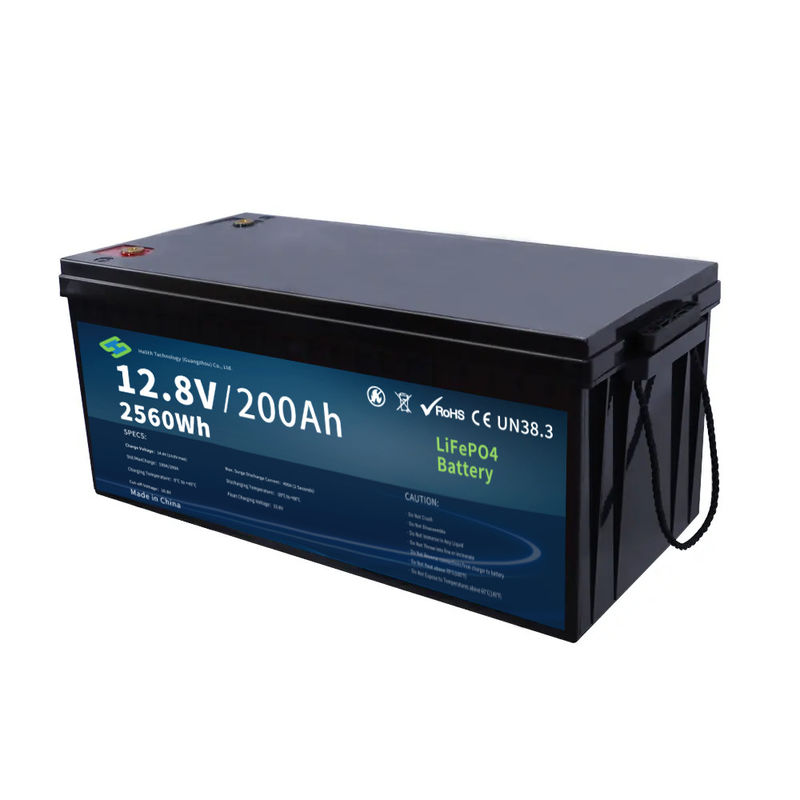

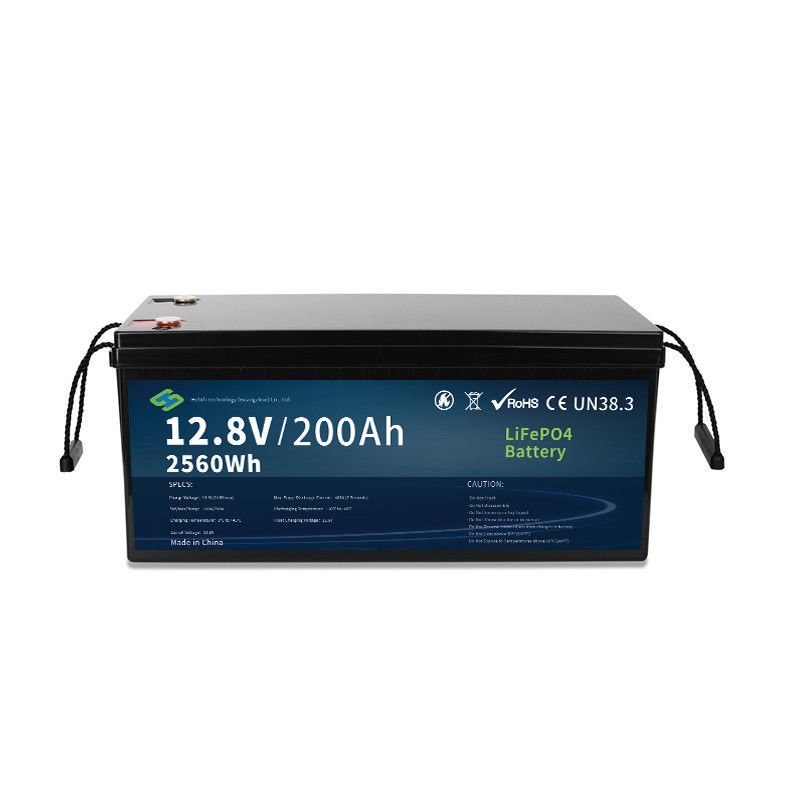

The Hertz 12200 12.8V 100Ah LiFePO4 Li-ion Golf Cart Battery by Helith Technology is a durable and efficient energy storage solution designed for golf carts and other applications. With its high-capacity prismatic cells, ultra-long cycle life of over 6000 cycles, and flexible configuration options (24V, 36V, 48V), it ensures consistent performance and reliability. Featuring an IP65 waterproof rating, optional LCD and Bluetooth connectivity, and compatibility with series and parallel setups, the Hertz 12200 is ideal for off-grid systems, recreational vehicles, and backup power.
| Model | Hertz 12200 |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 200AH |
| Nominal Energy | 2560WH |
| Battery Cell Type | Prismatic 100Ah |
| Configuration | 4S2P |
| Max.Continous Charge Current | 200A |
| Max. Continous Discharge Current | 200A |
| DC Resistance | ≤10mΩ |
| Charging Cut-off Voltage | 14.6V |
| Discharging Cut-off Voltage | 10V |
| Operate Temperature Range | Charge: 0°C~55°C |
| Discharge: -20°C~60°C | |
| Storage: -20°C~45°C | |
| Dimension | 522x240x218mm |
| Weight | 25KG |

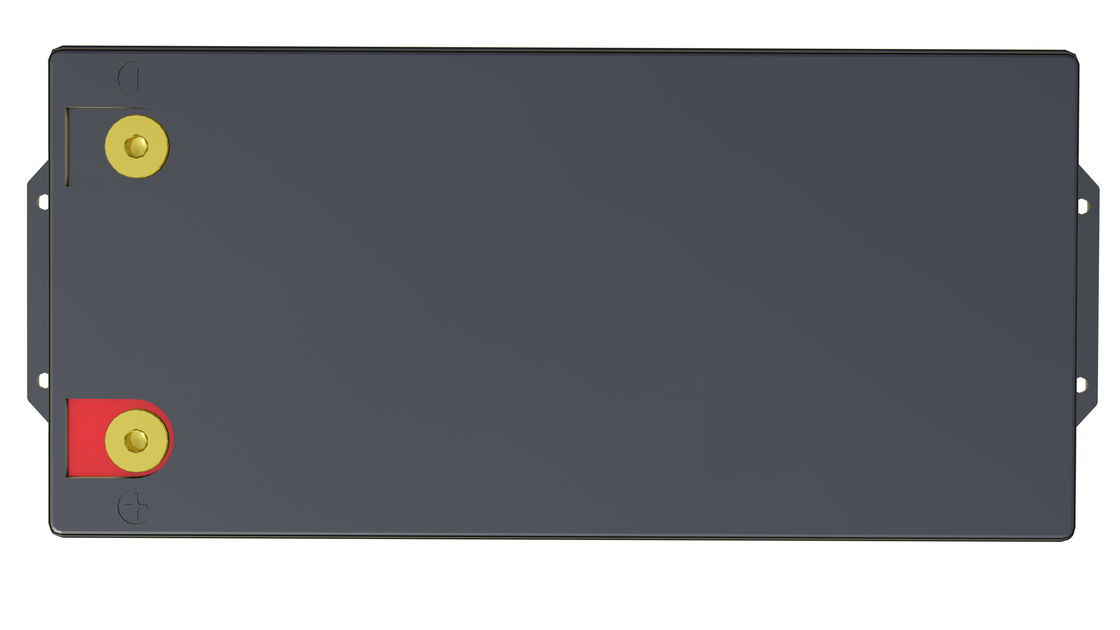

| Terminal Type | Screw terminal |
| Cover Sealing Type | Screw / gel sealing optional |
| Waterproof | IP65 |
| Cycle Life | >6000 Cycles (80%DOD) |
| LCD Screen Display | Optional(Show voltage V,Power %) |
| Bluetooth | Optional (Bluetooth with mobile APP) |
| Series & Parallels Function | Available to make in series and parallels to get 24V, 36V, 48V |
1. What is the cycle life of the Hertz 12200 battery?
The Hertz 12200 offers over 6000 cycles at 80% depth of discharge (DOD), ensuring long-term use and excellent performance.
2. Can this battery be used in series or parallel?
Yes, the battery can be configured in series or parallel to achieve 24V, 36V, or 48V systems for different applications.
3. Is the Hertz 12200 battery waterproof?
Yes, it is rated IP65, making it suitable for outdoor use and protection against dust and water.
4. Does the battery have Bluetooth or LCD display features?
Both Bluetooth connectivity (with mobile app support) and an LCD screen for voltage and power display are available as optional features.
5. What are the safety features of this battery?
The battery is designed with A-grade prismatic cells, robust internal circuitry, and excellent thermal stability, ensuring safety during use.
