Place of Origin:
China
Brand Name:
HelithTech
Model Number:
Hertz 12100
Contact Us

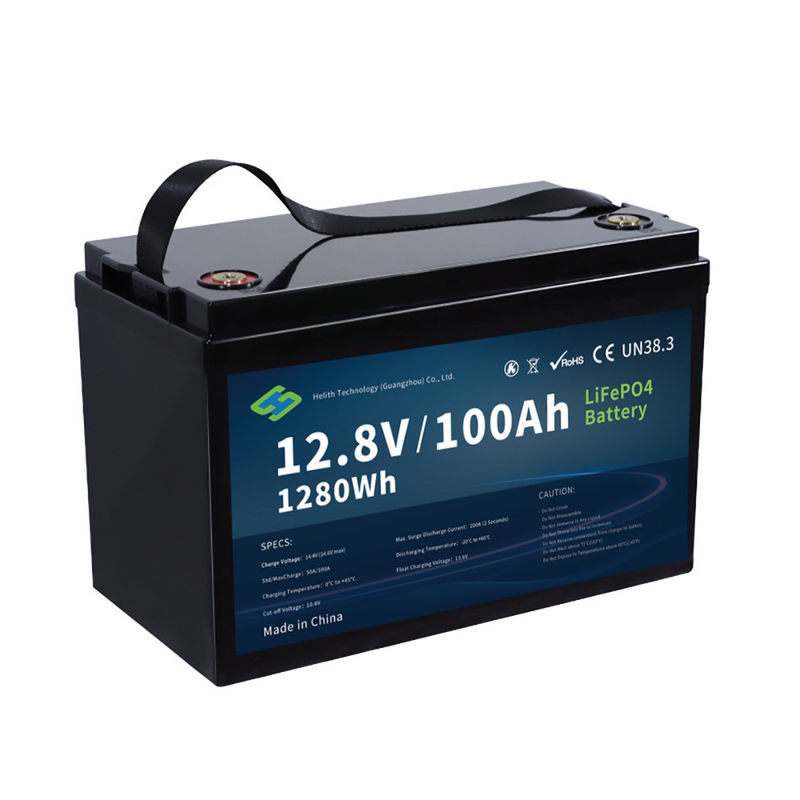

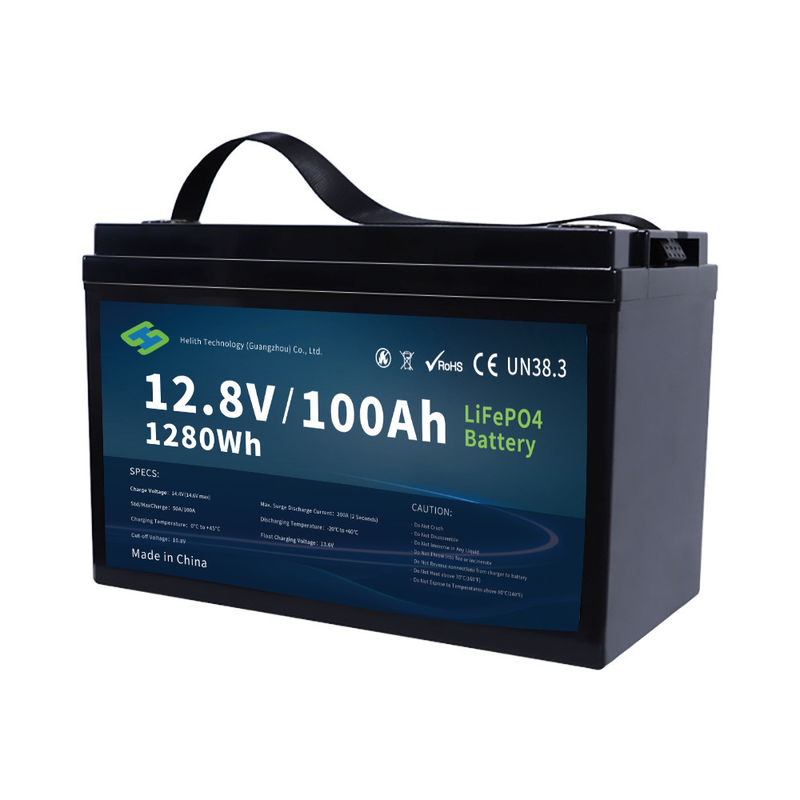

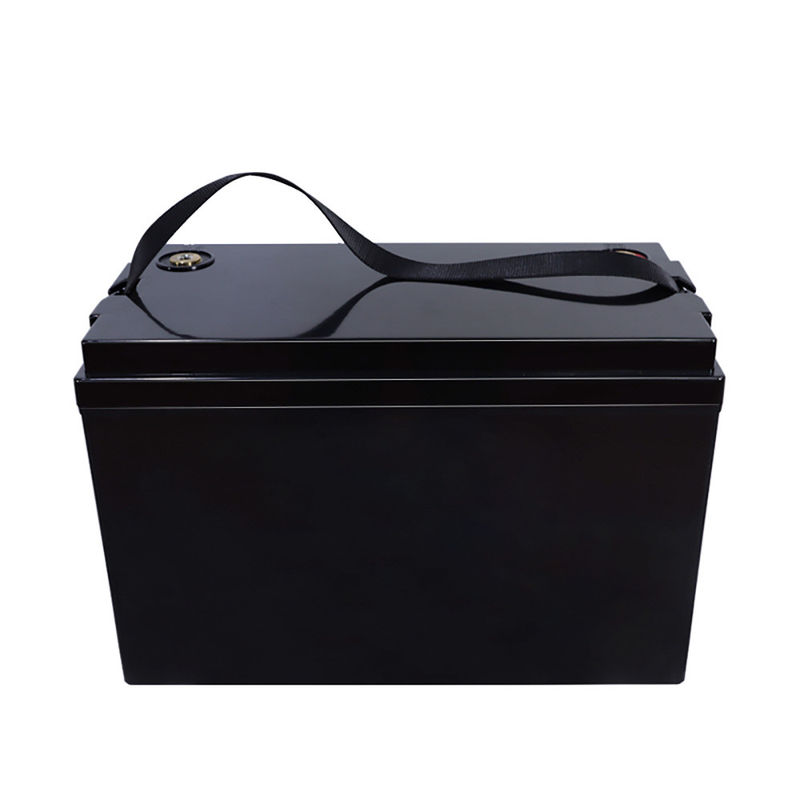

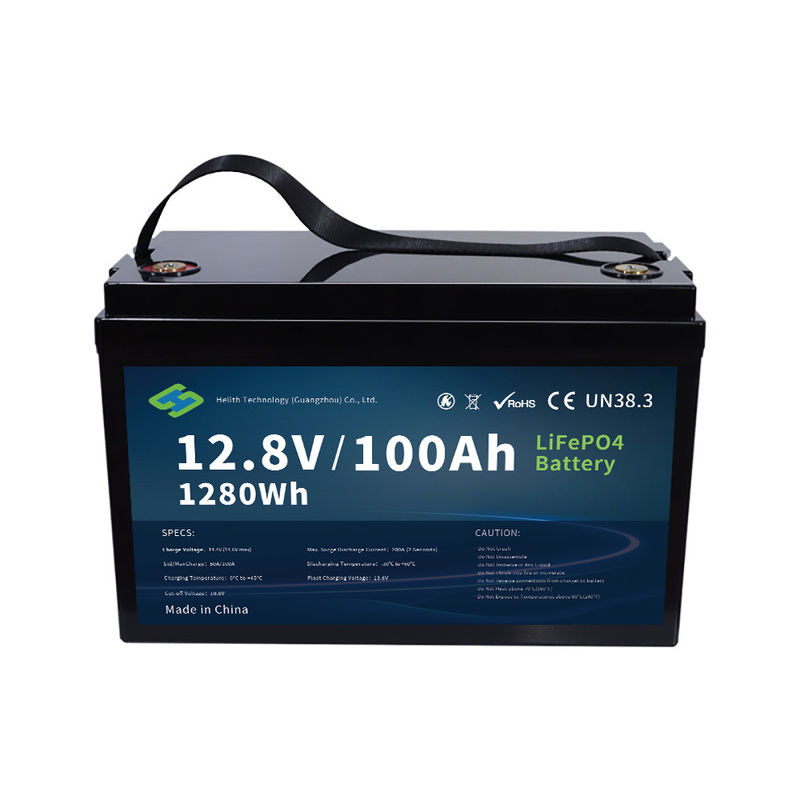

The Hertz 12100 is a 12.8V 100Ah LiFePO4 lithium battery, expertly crafted by Helith Technology (Guangzhou) Co., Ltd. for superior energy storage needs. Engineered with A-Grade prismatic cells, it delivers high performance, ultra-long cycle life, and robust durability, making it an ideal choice for golf carts, RVs, off-grid systems, and backup power applications. With IP65 waterproofing, advanced safety features, and optional smart technology like Bluetooth connectivity and LCD display, the Hertz 12100 offers reliability and convenience at an affordable price.
| Model | Hertz 12100 |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 100AH |
| Nominal Energy | 1280WH |
| Battery Cell Type | Prismatic 100Ah |
| Configuration | 4S1P |
| Max.Continous Charge Current | 100A |
| Max. Continous Discharge Current | 100A |
| DC Resistance | ≤10mΩ |
| Charging Cut-off Voltage | 14.6V |
| Discharging Cut-off Voltage | 10V |
| Operate Temperature Range | Charge: 0°C~55°C |
| Discharge: -20°C~60°C | |
| Storage: -20°C~45°C | |
| Dimension | 326x171x215mm |
| Weight | 12.5KG |
| Terminal Type | Screw terminal |
| Cover Sealing Type | Screw / gel sealing optional |
| Waterproof | IP65 |
| Cycle Life | >6000 Cycles (80%DOD) |
| LCD Screen Display | Optional(Show voltage V,Power %) |
| Bluetooth | Optional (Bluetooth with mobile APP) |
| Series & Parallels Function | Available to make in series and parallels to get 24V, 36V, 48V |
1. Can this battery be used for golf carts?
Yes, the Hertz 12100 is specifically designed for golf carts and other demanding applications, offering reliable performance and long cycle life.
2. Is the battery waterproof?
Yes, it has an IP65 waterproof rating, making it resistant to water and dust ingress.
3. Can the battery be connected in series or parallel?
Absolutely! It supports series and parallel connections to achieve configurations like 24V, 36V, or 48V.
4. What is the expected lifespan of the battery?
With over 6,000 cycles at 80% DOD, this battery offers many years of dependable service.
5. Does it come with a Bluetooth feature?
Bluetooth connectivity is optional and allows users to monitor the battery via a mobile app.
6. What is the charging cut-off voltage?
The charging cut-off voltage is 14.6V, ensuring safe and efficient charging.
7. Is there an LCD screen to check the battery status?
Yes, the LCD screen is an optional feature that displays the battery's voltage and power percentage.
