Place of Origin:
China
Brand Name:
HelithTech
Model Number:
HIVE L50-1
Contact Us
Video

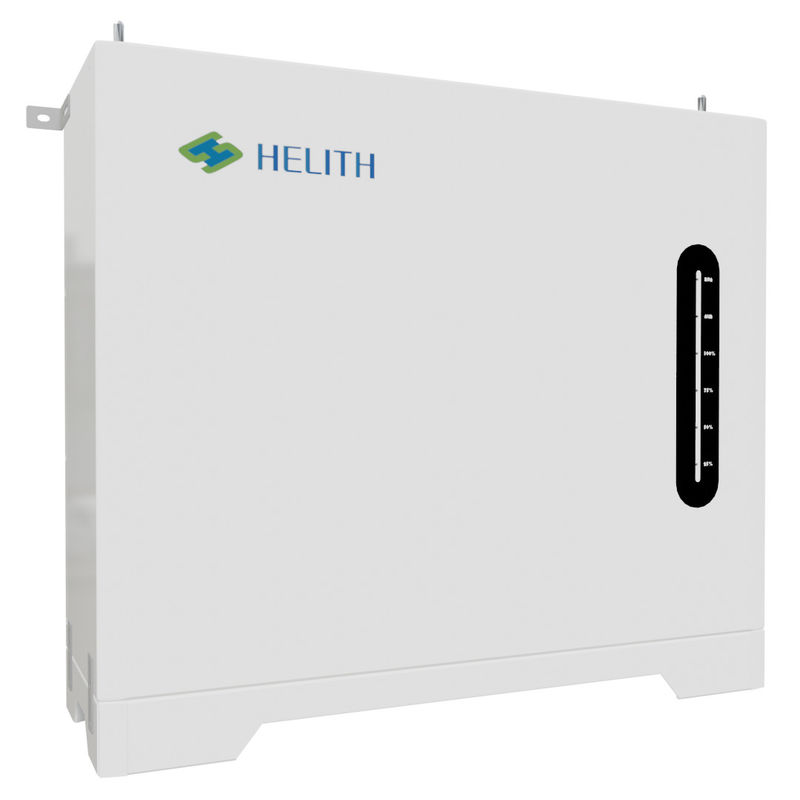

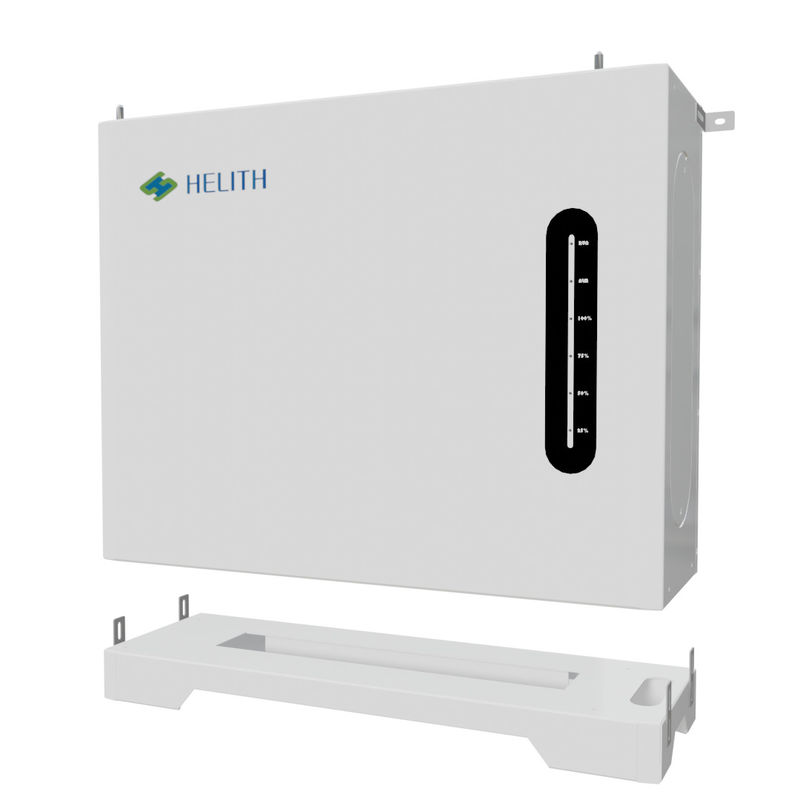

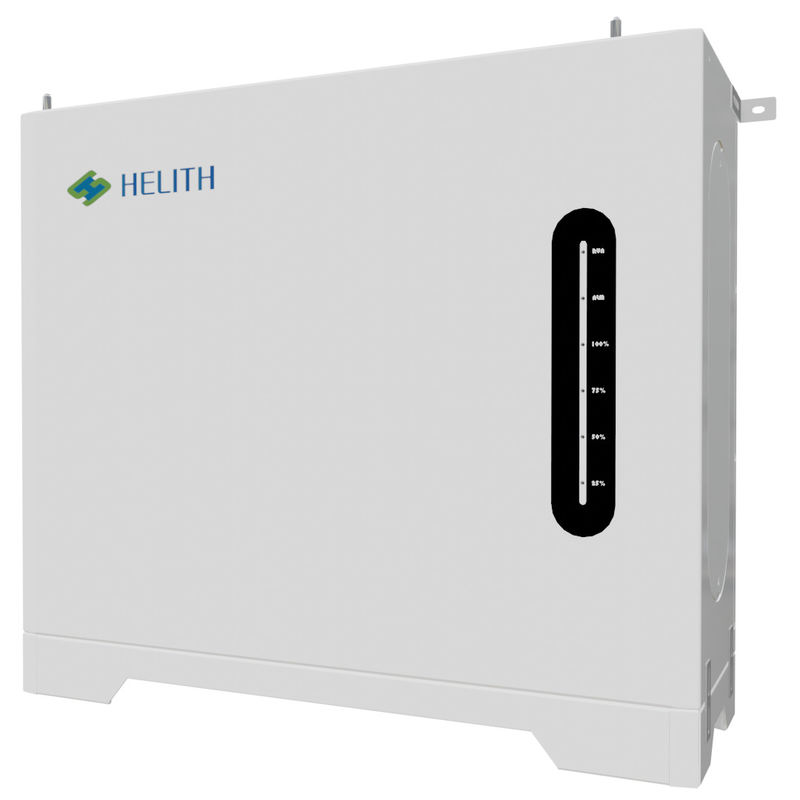

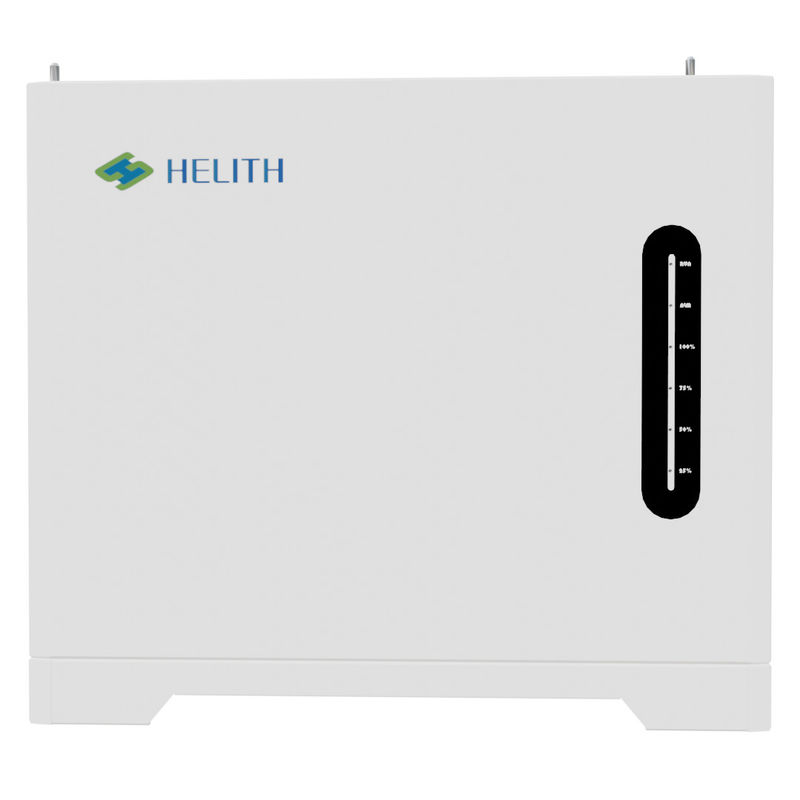

The Hive L50-1 is a versatile LiFePO4 battery system designed for residential applications, offering reliable energy storage for both wall-mounted and floor-standing installations. With a nominal capacity of 5.12kWh and robust performance, it ensures long-lasting, stable energy for your home. Engineered with A-grade LiFePO4 cells and an advanced Battery Management System (BMS), it delivers superior safety, durability, and efficiency. Its sleek design and flexible scalability make it the ideal choice for modern households aiming to optimize energy usage and embrace sustainability.
1. A-Grade LiFePO4 Cells
High-quality cells ensure enhanced safety, performance, and cycle life.
2. Comprehensive BMS Protection
Advanced protection against overcharge, over-discharge, and short circuits for optimal reliability.
3. Flexible Parallel Connection
Supports up to 15 units in parallel, allowing for expandable energy storage as your needs grow.
4. IP65 Protection Option
Available in IP65-rated variants for enhanced protection against dust and moisture.
5. Elegant Design
Modern, compact design fits seamlessly into any home environment.
6. Wide Operating Range
Operates efficiently in diverse temperature ranges, ensuring reliable performance in varied climates.
| Parameter | Value |
|---|---|
| Model | Hive L50-1 |
| Nominal Capacity | 5.12kWh |
| Dimension | 621*233.5*557mm |
| Weight | 51kg |
| Chemistry | LiFePO4 |
| Communication Method | CAN,RS485 |
| Operating Temperature Range | Charging: 0-55°C Discharging:-20-55°C |
| Storage Temperature Range | -20-40°C |
| Humidity | <95% non-condensing |
| Protection Level | IP20 |
| Cooling Method | Free Cooling |
Q1: What is the primary use case for the Hive L50-1?
The Hive L50-1 is designed for residential energy storage, ideal for backup power, self-consumption optimization, or integration with renewable energy sources like solar panels.
Q2: How many units can I connect in parallel?
You can connect up to 15 units in parallel, offering significant scalability for growing energy needs.
Q3: What is the expected lifespan of the battery?
The battery offers over 6,000 cycles at 80% Depth of Discharge (DOD), translating to 15+ years of service under typical conditions.
Q4: Can the battery withstand outdoor installation?
While the standard model is rated IP20 and suitable for indoor use, an IP65-rated variant is available for enhanced protection against outdoor elements.
Q5: What display options are available?
The Hive L50-1 offers an optional LCD display for real-time monitoring of battery performance and status.
Q6: What is the maximum charge/discharge current?
The battery supports a maximum charge and discharge current of 100A, ensuring high efficiency in power delivery.
Q7: What is the stacking capacity of this model?
The Hive L50-1 supports stacking of 1 to 3 modules, making it adaptable to your specific energy storage requirements.
