Product Overview:

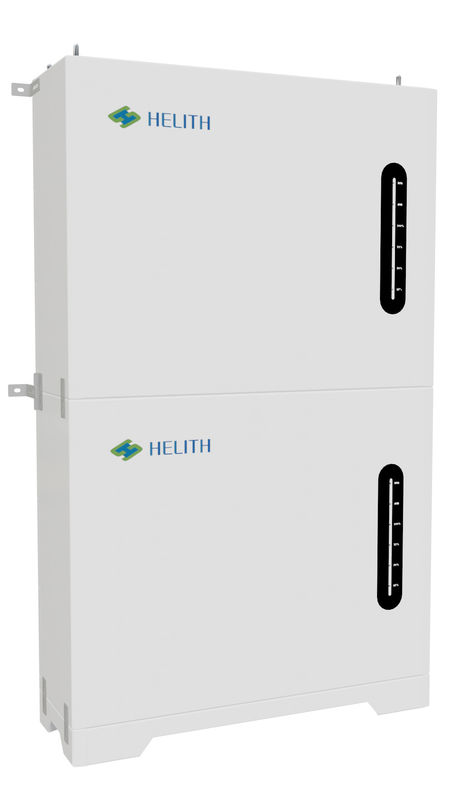

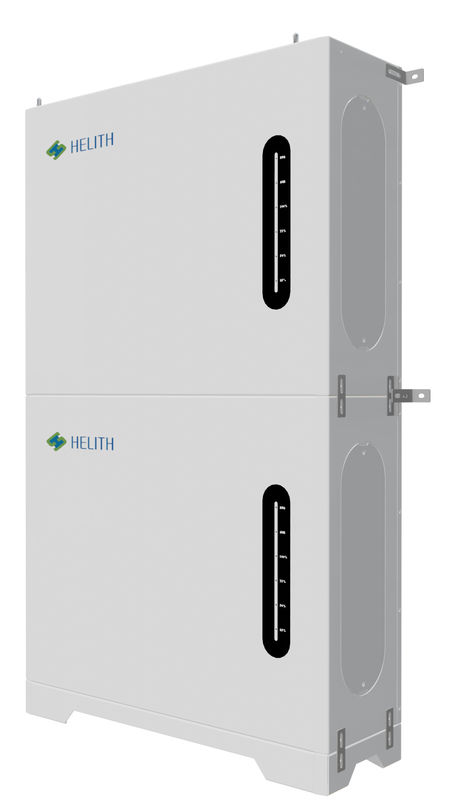

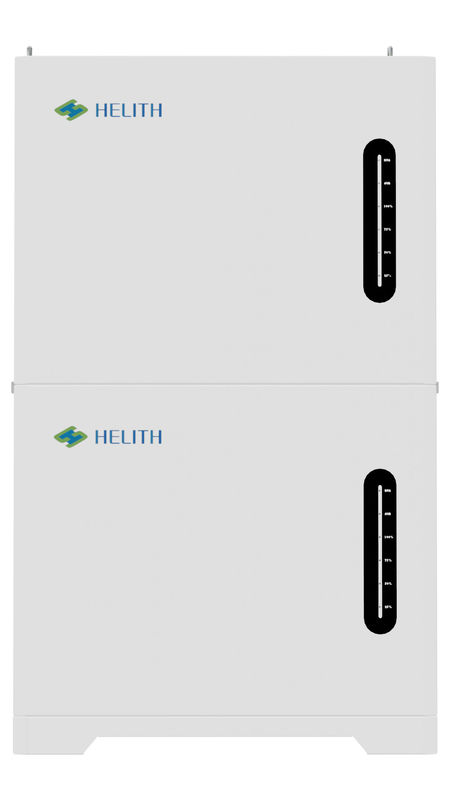

Helith Technology - China Reliable LiFePO4 Battery Pack Manufacturers: Hive L50-2 Modular LiFePO4 Battery System
The Hive L50-2 is a versatile and high-performance LiFePO4 battery system developed by Helith Technology (Guangzhou) Co., Ltd., a leading manufacturer and supplier of advanced energy storage solutions. With a nominal capacity of 10.24kWh, this modular battery system is ideal for residential energy storage, offering both wall-mounted and floor-standing installation options. Designed for OEM, ODM, and customized applications, the Hive L50-2 is perfect for wholesalers and businesses seeking reliable and scalable energy storage solutions.
Product Specifications:
Cell Dimensions
| Parameter | Size |
| Height | 1057 mm |
| Width | 233.5 mm |
| Length | 621 mm |
| Weight | 100 kg |
| Model | Hive L502 |
| Nominal capacity | 10.24kWh |
| Module Number | 2pcs |
| Dimension (mm) | 621*233.5*1057 |
| Weight | 100kg |
| Chemistry | LiFePO4 |
| Battery Cell | 3.2v100Ah |
| Battery Module | 5.12kWh |
| Nominal voltage | 51.2V |
| Operating voltage range | 40V-58.4V |
| Max charge/discharge current | 100A |
| Cycle life | >6000 Cycles(80%DOD) |
| Communication method | CAN,RS485 |
| Operating temperature range |
Charging: 0-55°C Discharging:-20-55°C |
| Storage temperature range | -20-40°C |
| Humidity | <95% non-condensing |
| Altitude | < 4500m |
| Protection level | IP20 |
| Cooling method | Free Cooling |

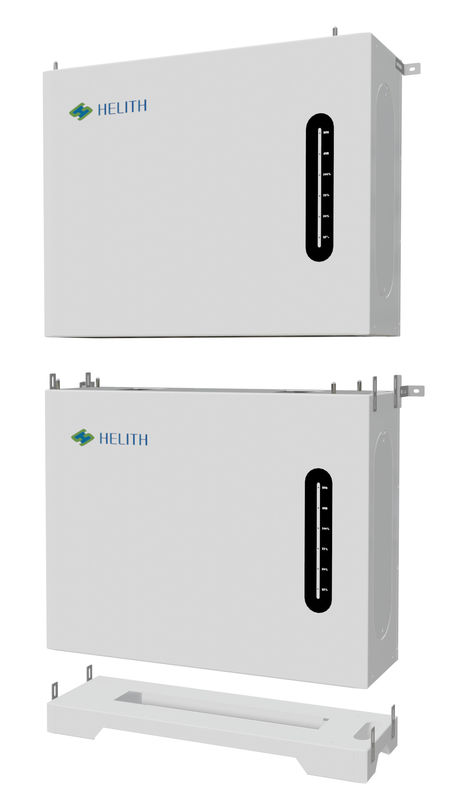

Note: The range for stacking battery modules is from 1 to 3 modules.
Key Advantages:
The Hive L50-2 by Helith Technology is your reliable choice for advanced, scalable, and safe residential energy storage.
